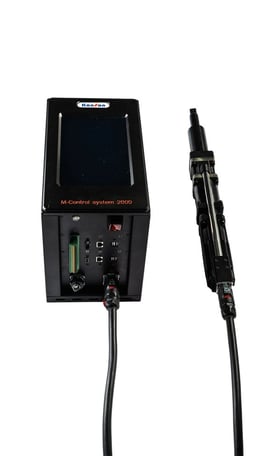

Konson Smart Tightening Spindle

☆ Tightening spindle selection range: 100 ～ 3000Nm. 3000Nm above can be customized according to the user's special requirements；

☆ System calibration accuracy: torque ≤ ±3%; Angle ≤ ±1°;

☆ Tightening mode: torque control, torque control + angle monitoring, angle control + torque monitoring, torque control + angle control, etc., can be selected according to customer needs.

☆ Control mode: master-slave control mode.

☆ Tightening rhythm: ≤ 15 seconds/each bolt or nut (a single cycle tightening time)

☆ Maximum noise: ≤ 65dB

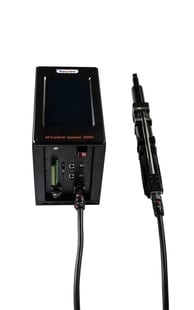

Konson Smart Tightening System

Konson brand tightening system is a high-tech assembly tightening tool with high efficiency, high precision and low noise, which is independently developed by Dalian Kangzhan and has its own intellectual property rights. It has the advantages of compact, durable and easy integration. The tool adopts the structure form of imported brands from abroad, avoiding the defect of low integration degree of domestic brands, and adopts Ethercat bus architecture, making the system topology flexible, simple and easy to use, fast response, good synchronization and strong real-time performance.

Konson tightening system is divided into two types according to the performance of the tightening spindle : standard type and high-performance type . Both tightening spindle systems are composed of a power supply module (PSM), a master station module (MSM), a slave station module (SSM), and a tightening spindle.

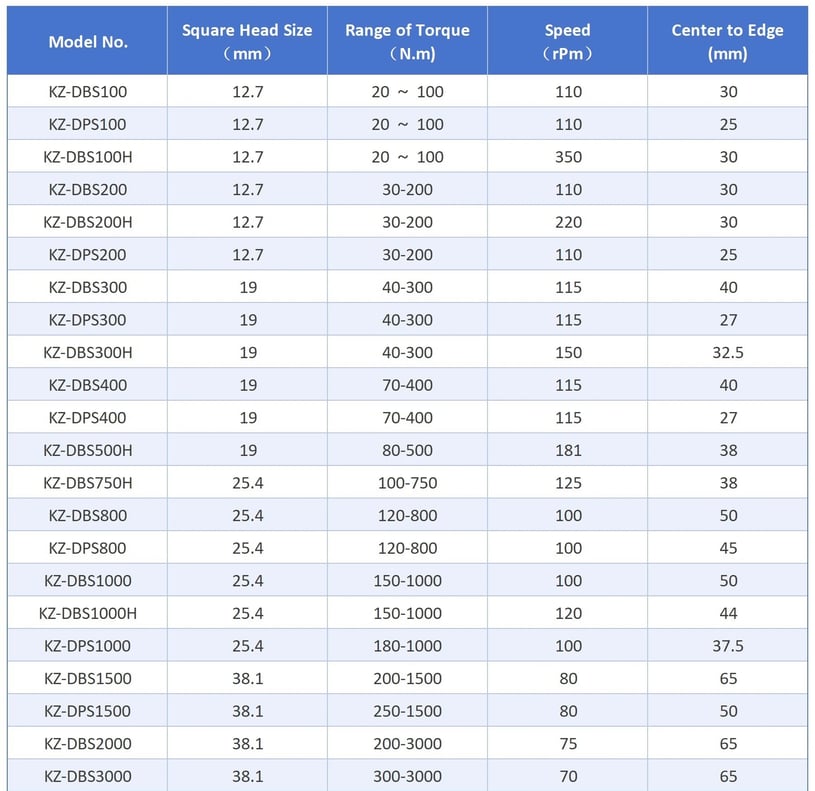

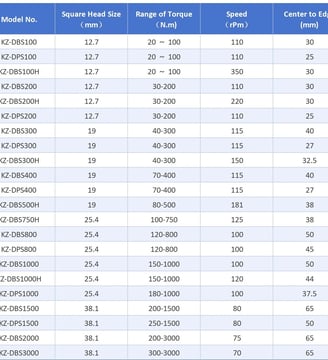

Tightening Spindle Selection Table

(DBS for straight spindle, DPS for offset spindle, H for high-performance version)

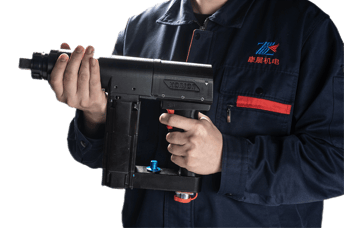

Konson Electric Hand-Held Nutrunner

★ Adopt unique rotatable design, for different reaction position, can rotate the reaction rod at will;

★ Extremely compact demensions, the motor right angle arrangement, can reduce the length of the host, easy to tighten small space;

★ Equipped with operator feedback, multiple LEDs ( Showing working, qualified, unqualified status ), torque value display gives direct feedback of tightening result,easy to prevent errors.

★ With multi-stage model selection knob, has preset different models of tightening parameters, can be directly selected, convenient and fast;

★ Hand start button can control the tightening speed, finger hook to half for slow, finger hook to the end for fast, the function is easy to fasten nuts with pin hole;

★ Torque range: 10-3000N. m between different grades (a total of 11 kinds) to choose from;

★ Torque accuracy: ≤ ±3%;

★ Angle accuracy: ≤ ±1°;

★ Low noise: ≤ 62Db.

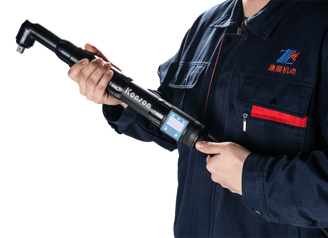

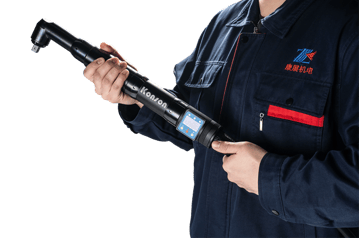

Konson Electric Hand-Held Angle Nutrunner

★ Using special reaction force design, the operator does not need to continue to hold hands strongly during the operation, reducing work intensity:

★ Extremely compact dimensions, with right-angle arranged to facilitate tightening in small spaces:

★ With multi-position model selection button, the preset tightening parameters of different models can be directly selected, which is convenient and fast:

★ High speed, big cow meter. On the premise of ensuring high-quality work results, the work cycle time can be saved by more than one-third;

★ Torque range: Different grades (11 types in total) available between 10-500N.m;

★ Torque accuracy: ≤ ±3%;

★ Angle accuracy: ≤ ±1°;

★ Low noise: ≤ 40Db.

Electric Handheld Nutrunner Cases

Tighten Axle Steering Arm Bolts With Countersunk Head Drive Pin

★ KONSON Electric Nutrunner adopt unique rotatable design, for different reaction position, can rotate the reaction rod at will.

Tighten Axle Steering Arm Bolts With Countersunk Head Drive Pin

★ KONSON Electric Nutrunner, Extremely compact size, the motor right angle arrangement, can reduce the length of the host, easy to tighten small space.

Tightening of Flange Nut of Main Reducer Assembly of Vehicle Axle

★ KONSON Electric Nutrunner, Tool rear intuitive position with work, qualified, unqualified status lamp indication and digital torque value display, intuitive and easy to error prevention.

Tightening of Flange Nut of Main Reducer Assembly of Vehicle Axle

★ KONSON Electric Nutrunner With multi-stage model selection knob, has preset different models of tightening parameters, can be directly selected, convenient and fast.

Tightening of Bolts On Joint Surface of Main Reducer Assembly

★ KONSON Electric Nutrunner, Hand start button can control the tightening speed, finger hook to half for slow, finger hook to the end for fast, the function is easy to wear pin tightening assembly of the nut on the hole.

Tightening of Main Cone Nut of Main Reducer Assembly

★ Torque range: 10-3000N. m ;

★ Torque accuracy: ≤ ±3%;

★ Low noise: ≤ 62Db.

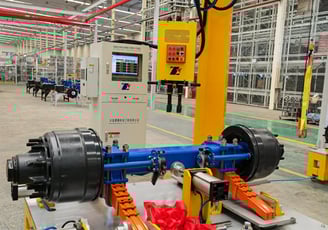

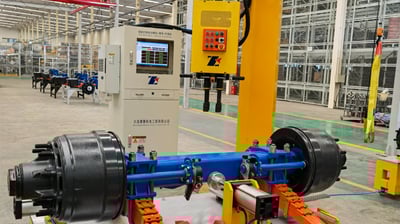

Multi-Spindle Nut Runner Cases

◆ Suitable for tightening and assembling of tires, U-bolts and other bolts in the assembly line of cars, buses, light and heavy trucks and special vehicles.

◆ Main equipment: tire multi-spindle nut runner, U-bolt multi-spindle nut runner, balance shaft multi-spindle nut runner and steering multi-spindle nut runner, etc.

Multi Spindle Wheel Nut Runner

Automatic Multi Spindle Interchangeable Wheel Tightening Machine

Automatic Multi Spindle Interchangeable Torque Machine

Automatic Multi Spindle Main Bearing Nut Runner

Electric Tightening Machine for Weighing Sensor

Four Spindle U-Bolt Nut Runner

Test Machine Cases

Engine Crankshaft Clearance Measuring Machine

Front Axle Toe-In Measuring Machine

Shaft Nut Pretightening Force Testing Machine
