Automatic Axle Hub Nut Tightening and Torque Testing Machine

Description

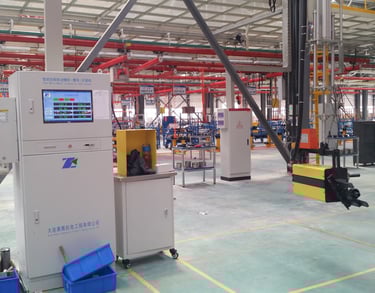

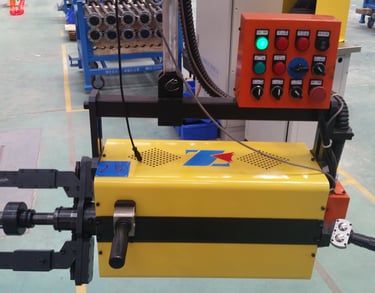

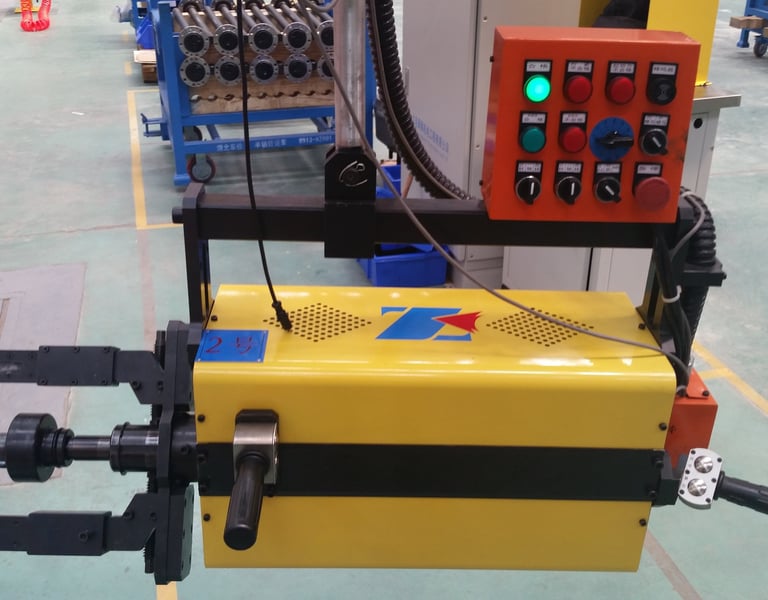

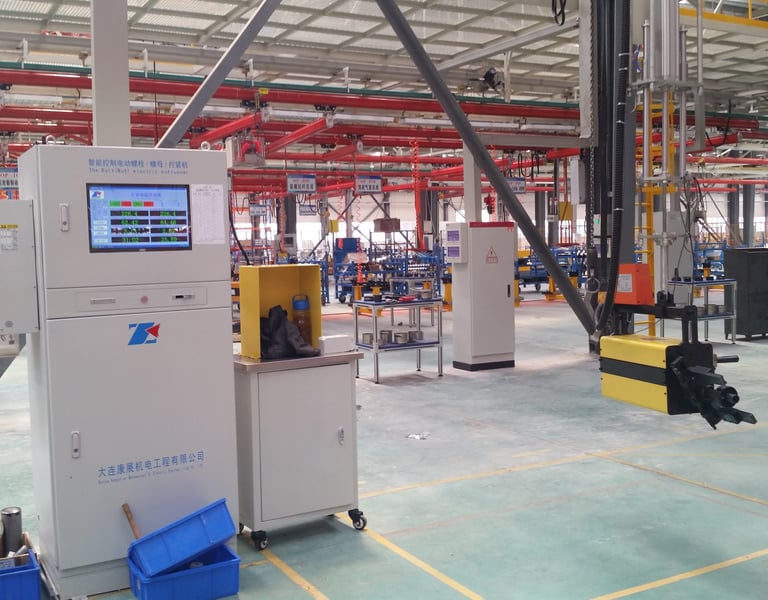

Our Automatic Axle Spindle Nut Tightening & Torque Testing Machine is designed for precise and reliable tightening of spindle nuts in automotive and commercial vehicle axle assemblies. The system combines automatic nut tightening with torque monitoring and verification to ensure consistent fastening quality.

The machine is suitable for truck axles, heavy-duty axles, and other wheel-end assembly applications. It provides controlled tightening torque, real-time process monitoring, and torque verification to help ensure that each spindle nut meets the specified assembly requirements.

The system can be integrated into automated axle assembly lines and customized according to axle specifications, torque requirements, production capacity, and factory layout.

Main Procedure

1、Install the wheel hub to the axle, manually assemble the tapered roller bearing in place, and insert the inner nut of the axle head into the 1-2 buckle；

2、Align the tightening machine socket with the nut, click the "Start" button to tighten the nut to the target torque, and maintain zero speed for 0.5-1 seconds to eliminate the elastic recovery of the threaded connection.

3、Turn the nut 1/3 to 1/8 turns in reverse (the angle value can be set arbitrarily), and at the same time, turn the shift fork to rotate the hub counterclockwise for 1-2 seconds, in order to stagger the gap of the pressed bearing；

4、Manually place the sliding pad and align it with the pin hole, then insert the locking piece and bring the outer nut of the shaft into 1-2 buckles；

5、Align the tightening machine socket with the nut and click the "Start" button to tighten to the target torque.，

6、Continue to rotate the wheel hub and detect the starting torque of the wheel hub in real time. When the required starting torque is reached (1-15Nm), stop the reverse rotation and maintain the nut position at zero speed；

7、The rotary spindle drives the shift fork to continue to rotate the wheel hub in the opposite direction at a certain speed for 3-5 seconds. When the starting torque has been stable within the required range, it is qualified and exits;

8、For the axles with ABS systems, the ABS voltage signal can be detected at the same time on the basis of passing the starting torque detection; the ABS signal is generally: the maximum effective value of the voltage, the minimum effective value, the ratio of the maximum and minimum voltage (generally ≤2), voltage waveform, ring gear gap, etc.

1. What is an axle spindle nut tightening machine?

An axle spindle nut tightening machine is an automated system designed to precisely tighten spindle nuts on automotive and commercial vehicle axles. It controls the tightening process to ensure consistent torque and reliable wheel-end assembly.

2. What types of axles can the machine be used for?

The machine can be designed for passenger car axles, truck axles, heavy-duty axles, and other automotive axle configurations according to specific product requirements.

3. Can the machine control tightening torque?

Yes. The system provides precise torque control and monitoring to ensure that the spindle nut is tightened according to the specified assembly parameters.

4. Can tightening angle be controlled as well?

Yes. Depending on the configuration, the system can support torque-angle tightening strategies for applications requiring both torque and rotation-angle control.

5. Can the spindle nut tightening machine handle different axle models?

Yes. The machine can be configured for multi-model production using adjustable tooling, interchangeable fixtures, automatic parameter selection, and product identification.

6. Can the machine be integrated into an automated axle assembly line?

Yes. The automatic spindle nut tightening machine can be integrated with automated axle assembly lines, material handling systems, measurement equipment, and production traceability systems.

7. Does the system record tightening data?

Yes. Depending on the system configuration, parameters such as tightening torque, angle, tightening status, and process results can be monitored and recorded for quality control and traceability.

8. Can the spindle nut tightening machine be customized?

Yes. The equipment can be customized according to spindle nut specifications, torque requirements, axle models, production capacity, cycle time, and factory layout.
